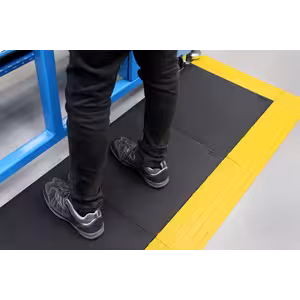

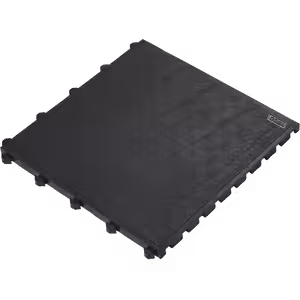

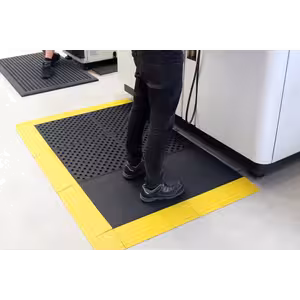

The Fatigue-Lock Tile provides a raised, cushioned surface that reduces fatigue and discomfort for industrial, manufacturing, and retail environments. It features an interlocking design for easy assembly and reconfiguration, and is available in two types: solid (for dry areas) and with holes (for wet areas requiring drainage).
Key Features
Recycled rubber content
Textured for slip resistance
Oil, chemical and temperature resistance
For short and long term projects
Documentation
Case Studies & News
Case Studies & NewsRead similar Case Study or News article
Certifications & Testing
Certifications & TestingSlip tests or Operating temperature documents upon request
Typical Applications
- Industrial workstations
- Manufacturing lines
- Retail counters
- Packing areas
- Wet or dry production zones
Installation
- Lifting: By hand
- Positioning: 1 person for fast offloading and handling

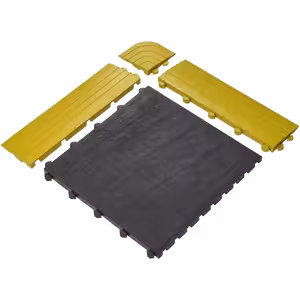

- Connectors: Built-in interlocking edges; optional corner and ramped edges available
- Duration: Approx. 30 m² per hour (depending on site conditions)
- Storage/transport: Flat stacking is preferred to prevent warping or damage
Benefits
Customisable layout
Safe and comfortable feel
Easy to clean with hose or jet washer
Durable and long-lasting
Reduces fatigue and slipping
Sustainability & Compliance
- Eco-Friendly: Contains recycled materials
- Reusable & Recyclable: Loose-lay design reduces need for adhesives
- Safety Standards: Complies with slip resistance and temperature standards
Expert Insights
- Operating temperature: Min. -20°C to Max. +140°C
- Slip Tested: DIN 51130 – R10
- Ramp slip tested: DIN 51130
Need help choosing a mat for your purpose?
Need help choosing a mat for your purpose?Our technical team can help you assess ground conditions, load requirements, and project logistics to recommend the best configuration.
Contact us for expert advice.
