1850 T/m²
Heavy Duty
Alimats – Large Modules
From £440.00 per week
3.48m × 1.74m × 180mm
Need to know before you hire…
By the customer
- Off-loading and re-loading required. Contact us if you’re unable to do so
- Insurance while products are in customer’s possession required
- Delivery drop-off and pickup times will need to be discussed
From MultiMatts
- An assessment of site conditions and restrictions may be required
- Optional Installation will need to be arranged separately
![[]](/wp-content/uploads/icon-steel-material.avif){kind=icon}
View our Installation Price GuideSold in sets of 4
Smaller configuration available here
Delivery
This product is despatched as
dependant on Hire (quoted by MultiMatts)
Same Day
Next Day
Standard
Additional information
All delivery options are shown at the checkout.
Products are delivered within 2-4 working days as standard.
Same day and next day available for certain products.
If you require pre-noon delivery or exact timings, please contact us on 0800 292 2474.
(Exclusions apply. Read our Delivery Policy for more information)
We won’t be beaten on price!
Find it cheaper, we’ll beat it!

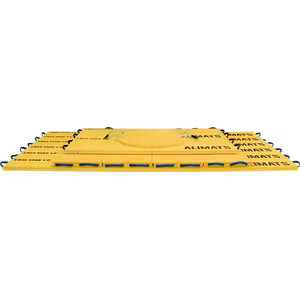

Alimats are an interlocking outrigger pad system designed to prevent cranes, MEWPs, and powered access machines from sinking or tipping. They feature a patented truss-like design that effectively distributes heavy-duty loads. The modular system can be configured to cover specific areas, with all configurations consisting of stacked modules and an outrigger pad placed on top. See configuration options below:
| Bottom | Middle | Top |
| 2x 1160mm x 580mm (25Kg each) | N/A | 1x 1160mm x 580mm (25Kg) |
| Bottom | Middle | Top |
| 2 x 1740mm x 580mm (38Kg each) | N/A | 2 x 1160mm x 580mm (25Kg each) |
| Bottom | Middle | Top |
| 2 x 2175mm x 580mm (48Kg each) | N/A | 2 x 1160mm x 580mm (25Kg each) |
| Bottom | Middle | Top |
| 3 x 1740mm x 580mm (38Kg each) | N/A | 2 x 1740mm x 580mm (38Kg each) |
| Bottom | Middle | Top |
| 3 x 2175mm x 580mm (48Kg each) | N/A | 2 x 1740mm x 580mm (38Kg each) |
| Bottom | Middle | Top |
| 4 x 1740mm x 580mm (38Kg each) | N/A | 2 x 1740mm x 580mm (38Kg each) |
| Bottom | Middle | Top |
| 4 x 2175mm x 580mm (48Kg each) | N/A | 2 x 2175mm x 580mm (48Kg each) |
| Bottom | Middle | Top |
| 6 x 3480mm x 290mm (48Kg each) | 4 x 1740mm x 580mm (38Kg each) | 2 x 2175mm x 580mm (48Kg each) |
| Bottom | Middle | Top |
| 7 x 3480mm x 290mm (48Kg each) | 4 x 1740mm x 580mm (38Kg each) | 2 x 2175mm x 580mm (48Kg each) |
| Bottom | Middle | Top |
| 8 x 3480mm x 290mm (48Kg each) | 4 x 2175mm x 580mm (48Kg each) | 2 x 2175mm x 580mm (48Kg each) |
Typical Applications
- Working Platforms
- Crane outrigger pads
- Temporary load spredding
- Construction sites
Installation
- Lifting: Handles for manual lifting
- Positioning: 2 people required
- Connectors: Panels have interlocking edges for easy installtion
- Duration: Approx. 10 minutes to create a configuration (Depending on ground conditions & Size)
- Storage/transport: Delivered in pre-wrapped packs on pallet and banded with polyester strips. To store mats, lay them flat on clean and dry surface
Sustainability & Compliance
- Eco-Friendly: Certified with CO₂ lifecycle analysis
- Reusable & Recyclable: Made from recycled aluminium
Need help choosing a mat for your purpose?
Need help choosing a mat for your purpose?Our technical team can help you assess ground conditions, load requirements, and project logistics to recommend the best configuration.
Contact us for expert advice.
Services
| Weight | 489 kg |
|---|---|
| Dimensions | 3480 × 1740 × 180 mm |
| Max Weight (Tonnes) | 1850 T/m² |
| Configurations | 6.05m² (12 Modules), 7.06m² (13 Modules), 8.07m² (14 Modules) |
| Weight | 498Kg (12 Modules), 584Kg (13 Modules), 672Kg (14 Modules) |
| Surface | Smooth |
| Material | Certified extruded aluminium |
| Connection Holes | Interlocking Modules |
| Colour | Yellow or white depending on modules |
| Duty | Heavy |
| Max Bearing Power (Tonne) | 1850 T/m² |
