200 T
Heavy Duty

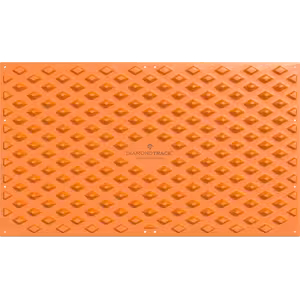

DiamondTrack Composite Trackout Mat
£1,995.00
3.66m × 2.14m × 95mm
High-performance and reusable mat that’s designed to remove mud, dirt, and debris from vehicle tyres as they exit construction zones. It is widely used in eco-sensitive areas, helping to reduce site clean-up costs and environmental impact.
Area Coverage
See how many mats you need to fit your space.
Mat Calculator
View Layout
Delivery
This product is despatched as
calculated. Please contact us for delivery options.
Same Day
Next Day
Standard
Additional information
All delivery options are shown at the checkout.
Products are delivered within 2-4 working days as standard.
Same day and next day available for certain products.
If you require pre-noon delivery or exact timings, please contact us on 0800 292 2474.
(Exclusions apply. Read our Delivery Policy for more information)
Check your delivery options
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
We won’t be beaten on price!
Find it cheaper, we’ll beat it!
DiamondTrack mats are engineered to deform elastically under vehicle tyres, forcing sediment and debris off before vehicles leave the site. This helps prevent trackout, reduces the need for road cleaning, and protects surrounding environments. The mats are flexible, bend without breaking, and are reusable across multiple projects.
Key Features
High-Density Polyethylene (HDPE)
Diamond-shaped terrain provides traction and durability
UV and wear resistant
For short and long term projects
Documentation
Case Studies & News
Case Studies & NewsRead similar Case Study or News article
Certifications & Testing
Certifications & TestingFlammability Resistance or Load testing results documents upon request
Typical Applications
- Ground Work Sites
- Temporary Roadways and Car Parks
- Heritage sites; Eco-Sensitive Areas
- Ground Protection
- Emergency Access Routes
Installation
- Lifting: 12 connection holes
- Positioning: Mechanical offloading assistance with 2 people for handling
- Connectors: 2-Way DiamondTrack Connectors / 4-Way DiamondTrack Connectors
- Duration: Approx. 12–20 minutes to connect in a line formation
- Storage/transport: Store and transport mats in their original palletised bundles and banded with straps
Benefits
Reduces clean-up and remediation costs
Flexible and durable under pressure
Low transport and handling costs – high ROI for yearly usage
Avoid environmental damage/contamination
Sustainability & Compliance
- Reusable & Recyclable: Designed for long-term use and end-of-life recyclability
- Standards: Helps protect surrounding environments by reducing sediment spread
Expert Insights
- Flammability resistance: UL94HB
- Weight Loading: Ultimate crush strength of 20,411.6Kg per diamond feature rating of 800 psi
Need help choosing a mat for your purpose?
Need help choosing a mat for your purpose?Our technical team can help you assess ground conditions, load requirements, and project logistics to recommend the best configuration.
Contact us for expert advice.
Services
| Weight | 197.3 kg |
|---|---|
| Dimensions | 3660 × 2140 × 95 mm |
| Max Weight (Tonnes) | 200 |
| Top Surface | Raised diamond pattern |
| Bottom surface | Smooth |
| Material | High-Density Polyethylene (HDPE) |
| Connection Hole | 4 |
| Colour | Orange |
| Duty | Heavy |
| Max Bearing Power | 45,000 lbs per 800 psi |
| Name | File |
|---|---|
| MultiMatts Product Brochure | Download |
Automatic review from MultiMatts –
Customer said it kept their entrance cleaner than before with quite a percentage less of flicked mud and residue.
